Using Looma

Homepage

From the Looma’s homepage, you can :

  • Navigate to the settings page

  • Control existing devices

  • Add new devices

Homepage overview

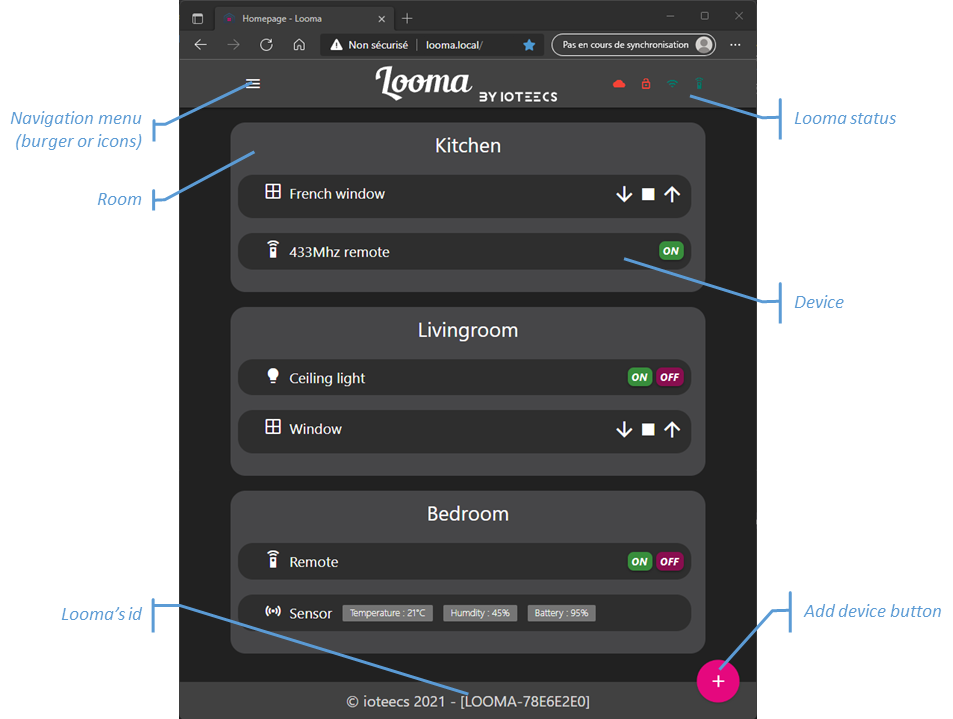

Looma’s homepage looks like the screen capture below :

Looma - Homepage

Adding a new device

On the homepage, just click on the ‘+’ sign and choose which device to add.

  • Somfy RTS

  • Dio

  • Device selection

  • Learn

And follow the wizard for Somfy RTS, Dio and Selection. If MQTT is not activated, you can’t specify a user-defined topic during the creation process. To activate MQTT, you have to go to MQTT configuration.

To Learn RF 433Mhz code, select the loupe.

A popin should appear, indicating that Looma is in receive and learn mode.

Just press the button on the remote you want to add. If detected, Looma asks you if you want to add another button.

When you have added all the buttons, a summary screen is show where you can test the commands and if one of them doesn’t work properly, you can redifine it. Do not delete it if you want to keep it with you device.

Somfy RTS

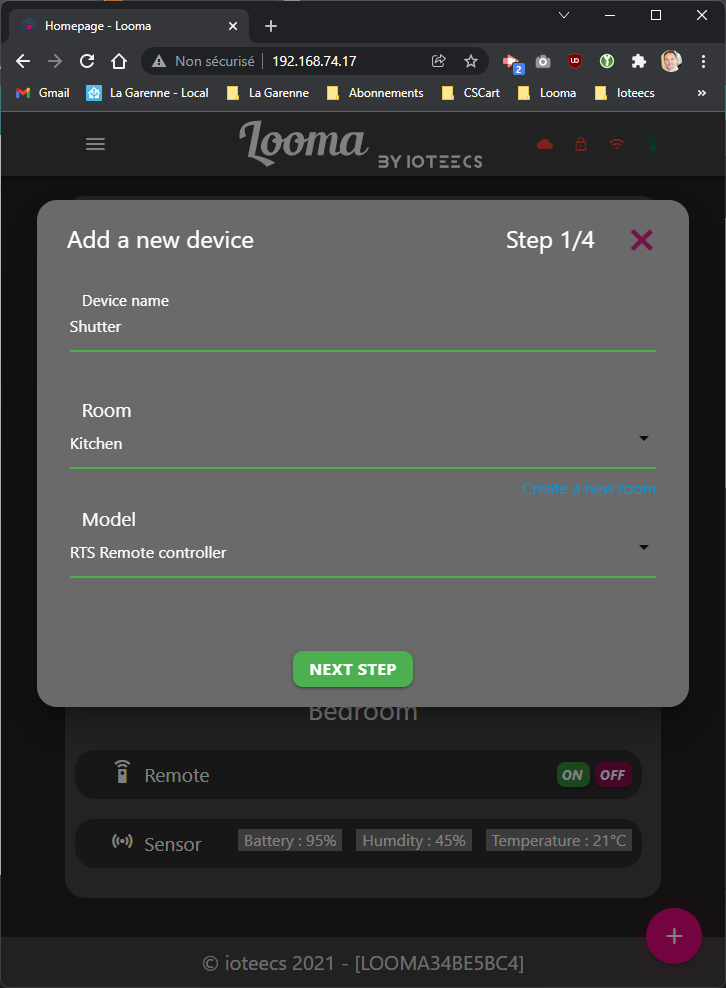

You have to fill the following fields : * Device name * Rooms * Model * Topic (this field appears only if MQTT is activated)

Add somfy RTS device

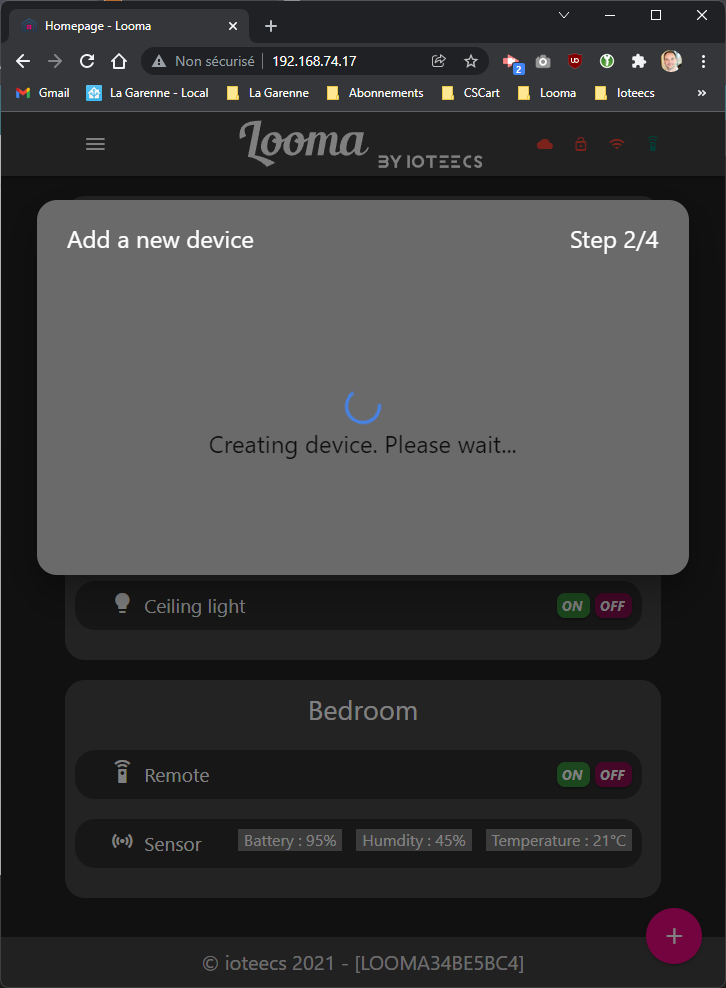

Once done, click the “Next Step” button to create the device in the database. When the device has been created, you can pair the virtual device with your physical device.

Add somfy RTS device

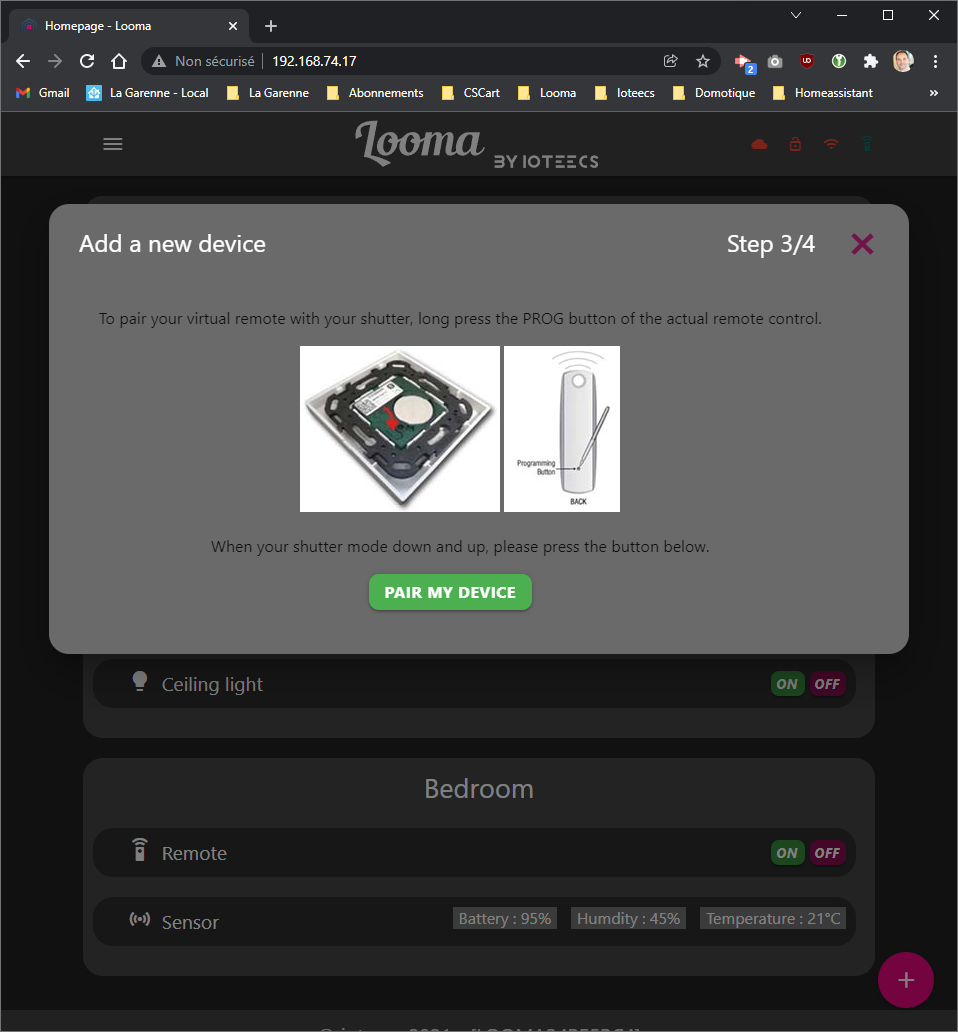

To do this, you have to press the pairing button on your original remote controller. Your shutter should go down and up to indicate it is in pairing/unpairing mode.

Add somfy RTS device

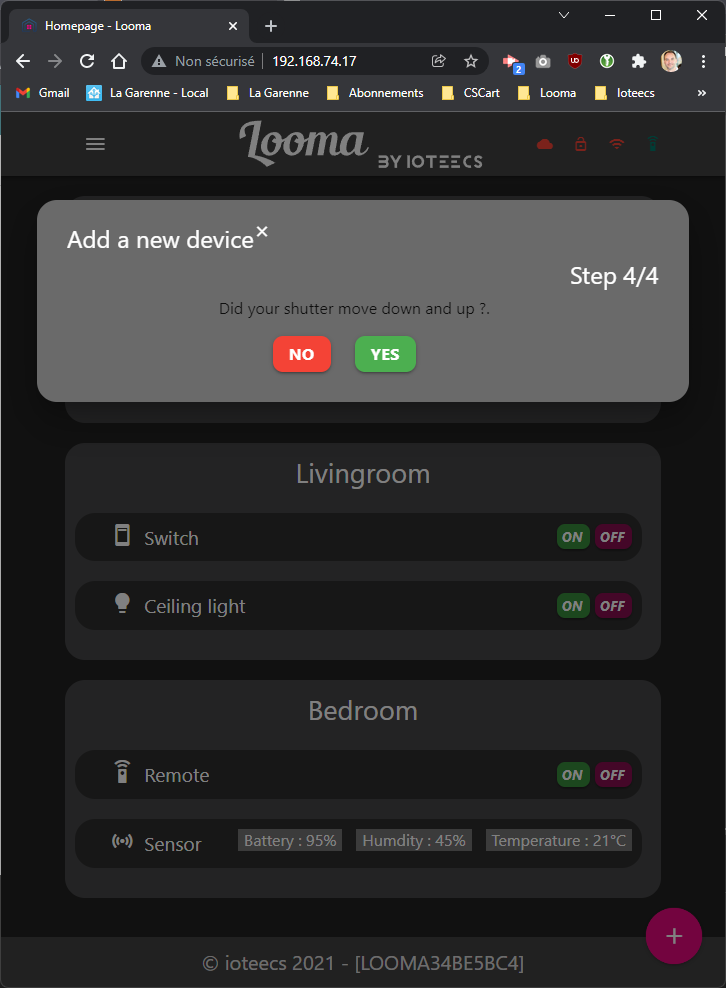

Now, you can click on the “Pair my device” button. Your shutter should go down and up. A new window appears to ask you if the shutter has been moving. If so, click yes to finish the pairing process.

Add somfy RTS device

Settings

From the Looma’s settings page, you can :

  • Modify the Wi-Fi credentials

  • Configure MQTT services

  • Configure Rooms

  • Configure devices

  • Get information on Looma

Wi-Fi credentials

Coming soon

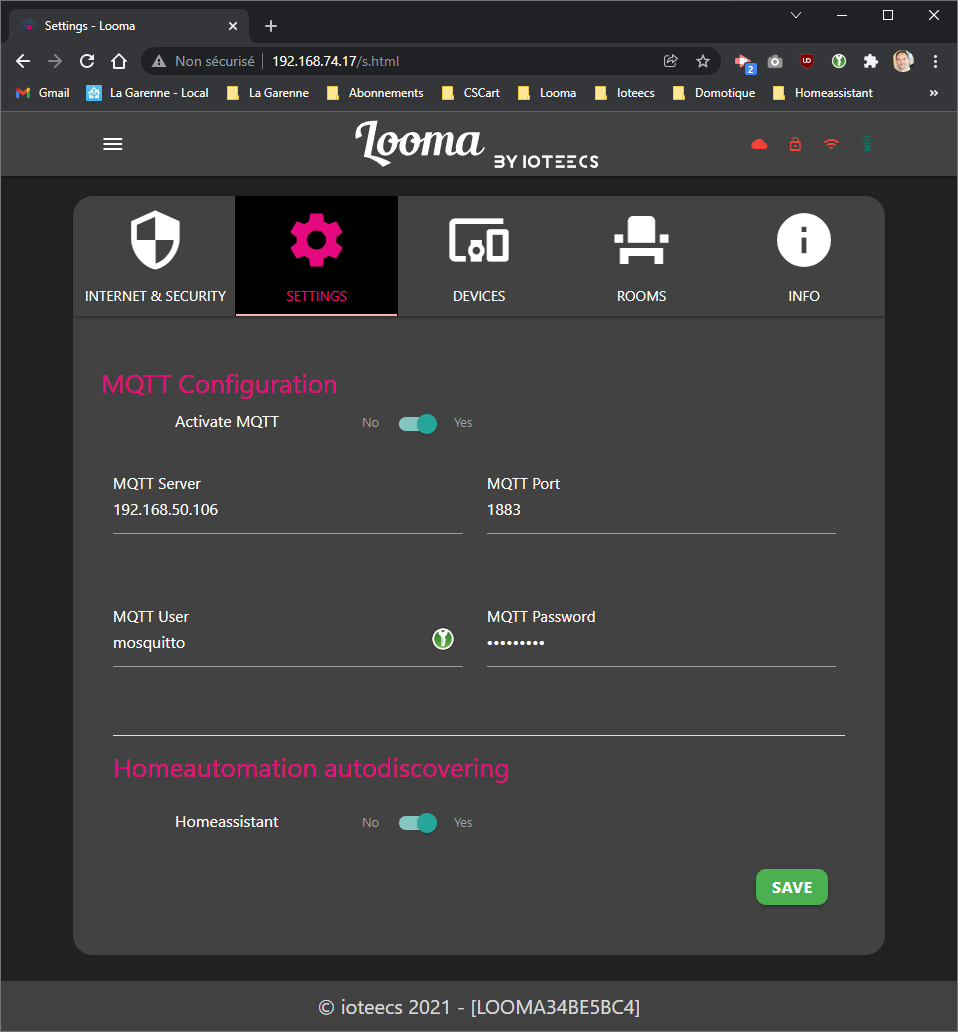

MQTT configuration

Looma is able to connect to an MQTT server such as Apache Mosquitto. By default, the service is not able.

Add somfy RTS device

You need to provide the IP address,the port and the credentials of you MQTT server. If you’re using Home Assistant, you can also activate the auto discovery. In ths case, the configured devices in Looma will automatically be added to Home Assistant.

Rooms configuration

Coming soon

Devices configuration

Coming soon

Looma information

Coming soon
